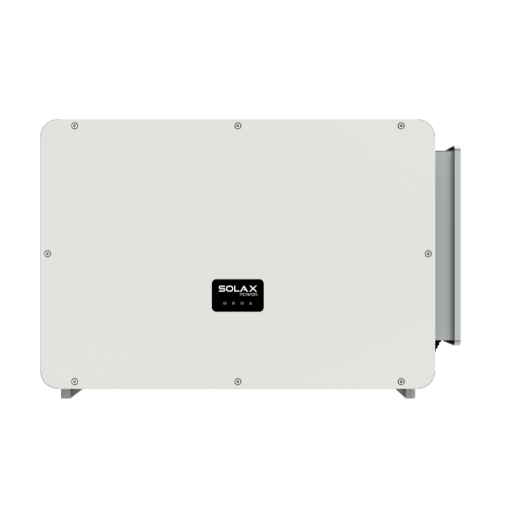

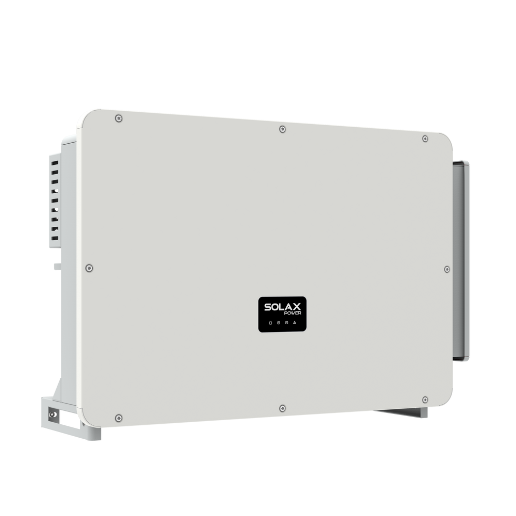

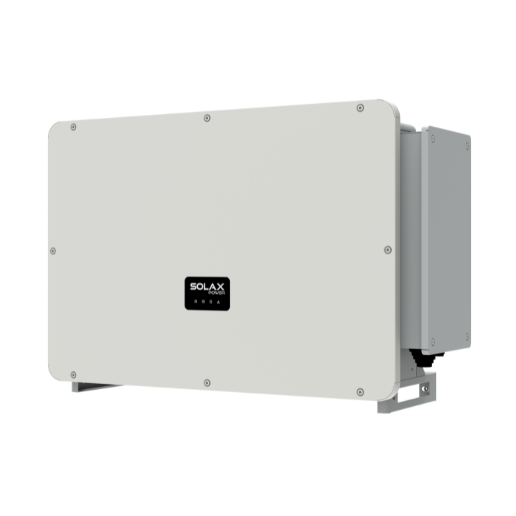

三相并网组串逆变器
X3-FORTH
- 免费阅读完整版 - 75kW / 80kW / 100kW / 110kW / 120kW / 125kW / 136kW / 150kW
- 观看视频
X3-FORTH系列转换效率高达99%，支持150%光伏超配及110%输出过载能力，配备12路MPPT，每路电流达32A，MPPT工作电压范围180–1000Vdc，为商业光伏系统提供灵活高效的高性能发电性活题材小说 BBBBBBBBB情节。
灵活适配 (少妇小说在线)
内置输出功率控制功能
支持远程设置与在线升级
可选铝芯交流电缆连接方案
少妇小说免费 - 智能设计
夜间无功功率自动补偿
智能风冷技术延长风扇寿命
高效散热设计助力系统减重 少妇小说在线，体积与重量同步降低超5%.
IV曲线智能诊断
"性活题材小说" 高效运行
转换效率高达99%
每路MPPT电流达32A
MPPT工作电压范围180~1000Vdc
支持150%光伏超配及110%输出过载
最大12路MPPT，每路支持2组组串
安全可靠
IP66防护等级
AFCI直流拉弧保护（可选）
交流端子温度实时监测
组串电流精准监控
24小时全天候运行监测
交直流侧均配备II级浪涌保护装置
| Rated output power | 75 kW |
| Nominal AC voltage | 3 / (N) / PE, 220 / 380 V 3 / (N) / PE, 230 / 400 V |
| Ingress protection | IP66 |
| Dimensions (W /H / D) | 985 × 660 × 327.5 mm |
| Net Weight | 83 kg |
- PV INPUT
Max. recommended PV array power 120 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 9 / 2 Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 80 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 83 kg
- PV INPUT
Max. recommended PV array power 150 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 9 / 2
12 / 2
Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 80 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 83 kg
- PV INPUT
Max. recommended PV array power 165 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 9 / 2
12 / 2
Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 110 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 83 kg
- PV INPUT
Max. recommended PV array power 180 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 12 / 2 Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 120 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 87 kg
- PV INPUT
Max. recommended PV array power 180 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 12 / 2 Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 125 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 87 kg
- PV INPUT
Max. recommended PV array power 204 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 12 / 2 Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 136 kW Nominal AC voltage 3 / PE, 500 / 540 V
- GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 87 kg
- PV INPUT
Max. recommended PV array power 225 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 12 / 2 Max. input current per MPPT 32 A - AC OUTPUT
Rated output power 150 kW Nominal AC voltage 3 / PE, 500 / 540 V - GENERAL
Ingress protection IP66 Dimensions (W /H / D) 985 × 660 × 327.5 mm
Net Weight 87 kg
